Finished product · Indoor PV application

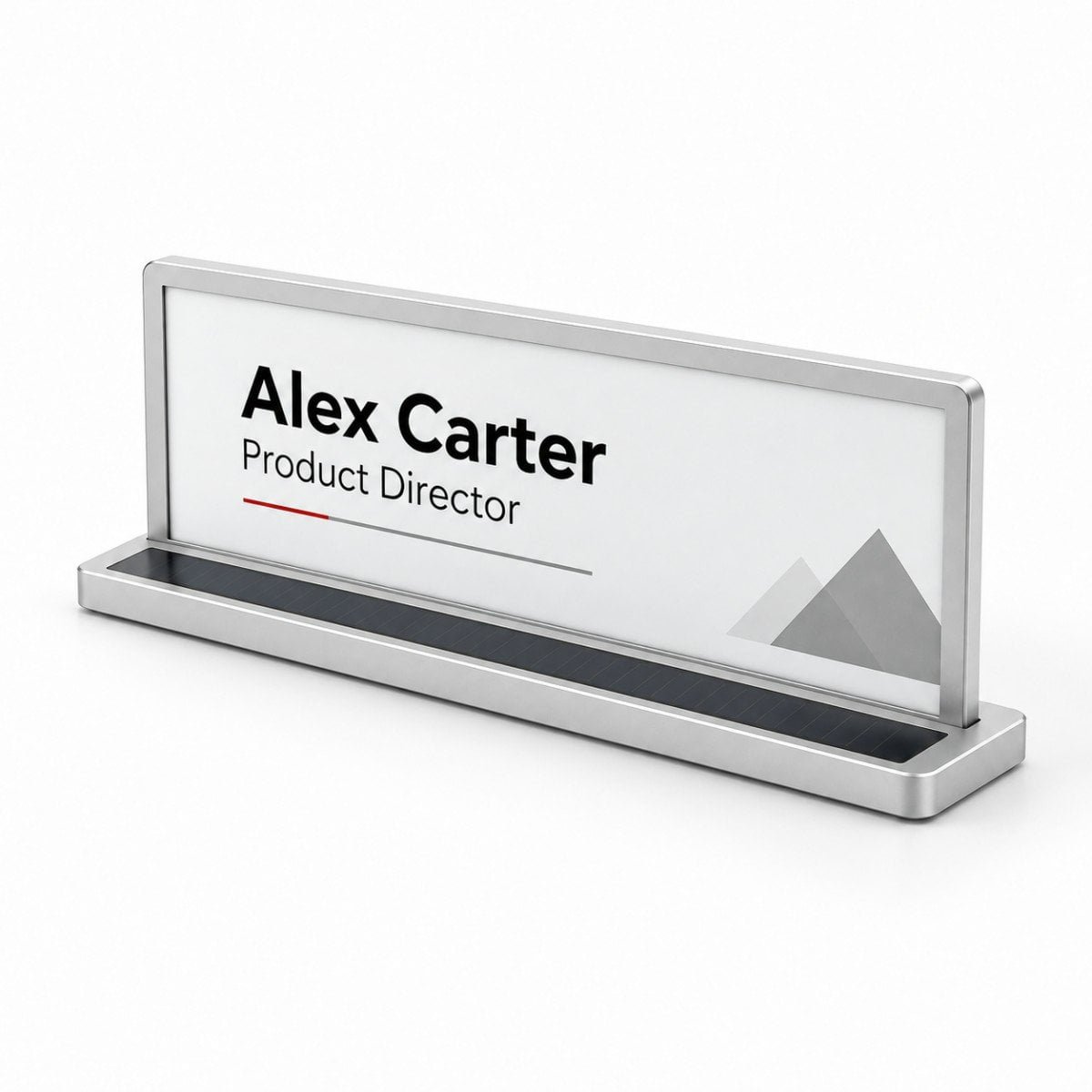

Solar-Powered E-Ink Nameplate
A reusable electronic nameplate for desks, meetings and events, designed to pair a low-power E-Ink display with indoor photovoltaic energy harvesting.
Product series
Available Models
Explore two display-size options or discuss a custom solar-powered nameplate. Tell us where it will be used, how often content changes and the lighting available. We will confirm the final configuration and availability in your quotation.

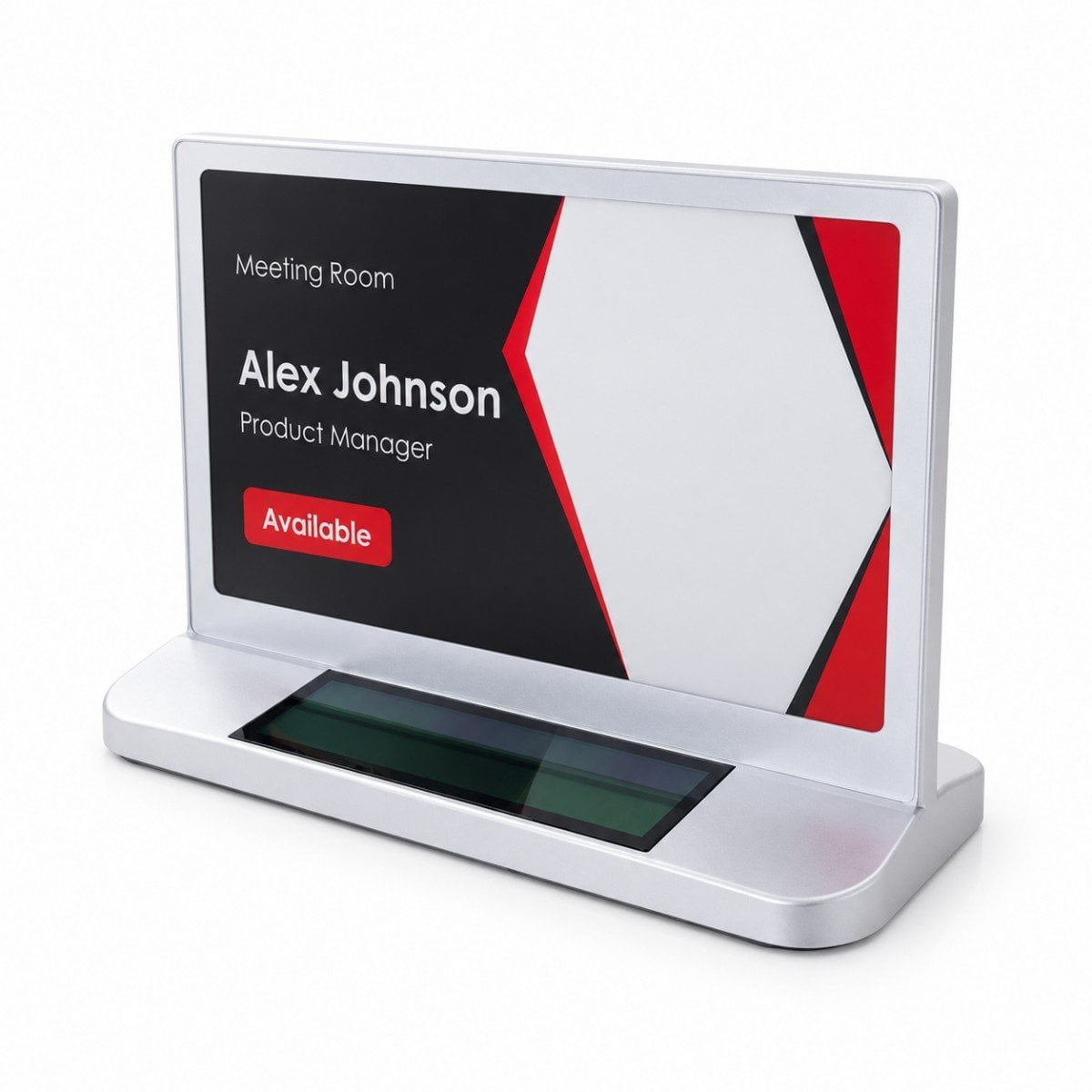

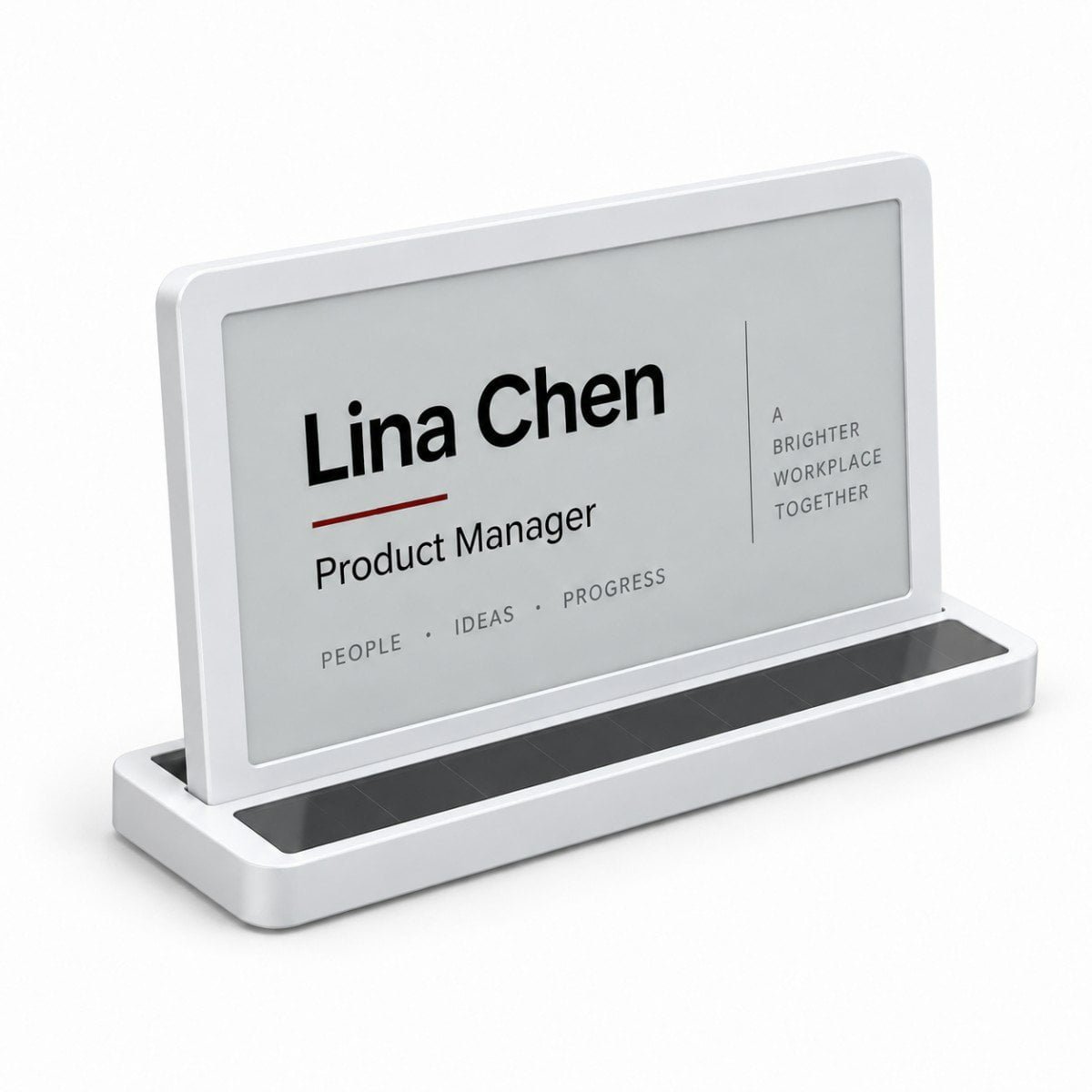

7.5″ Perovskite PV Nameplate

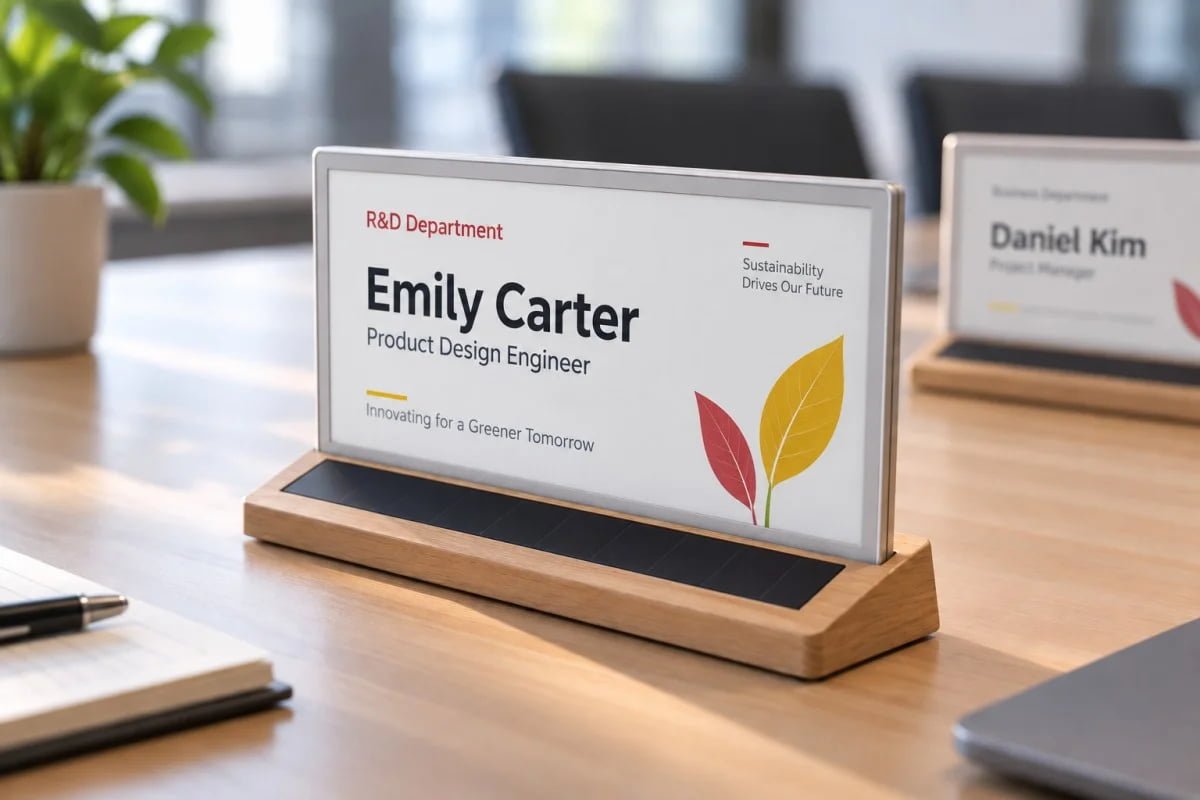

A compact nameplate option for desks, meeting seating and changing workplace identities.
- ✓ 7.5-inch display-size option
- ✓ Indoor PV integration for the selected configuration
- ✓ Content-update and power details confirmed per model
10.85″ Perovskite PV Nameplate
A larger display-size option for boardrooms, formal meetings and event seating.
- ✓ 10.85-inch display-size option
- ✓ Indoor PV integration for the selected configuration
- ✓ Final appearance and technical details confirmed by quote
DIY Solar-Powered Nameplate
Discuss a project-specific nameplate around your display format, enclosure, branding and indoor-light environment.
- ✓ Display and housing requirements
- ✓ PV module and power-system integration
- ✓ Update workflow and project quantity
| Parameter | 7.5″ Nameplate | 10.85″ Nameplate |
|---|---|---|
| Display size | 7.5-inch, dual-sided | 10.85-inch, black/white/red |
| Display technology | Bistable E-Ink display | Bistable E-Ink display |
| Colors / grayscale | Black, white and red; 2 grayscale levels stated | Black, white and red |
| Active display area | 161.0 × 96.0 mm | Confirm 10.85-inch active area |
| Resolution | 800 × 480 pixels | 1360 (H) × 480 (V) pixels |
| Pixel density | 125 dpi | 133 dpi |
| Product dimensions | 181.7 × 96.2 × 132.1 mm; top thickness 6 mm | 284 × 87 × 130 mm (axis order not stated) |
| Weight | 470 ±5 g | 780 ± 5 g |
| Display orientation | Landscape | Landscape |
| Viewing angle | Nearly 180° | Nearly 180° |
| Power & Environment | ||
| Operating voltage | 3.2 V | 3.2 V |
| Integrated battery | 1800 mAh or 2000 mAh, depending on configuration | 1800 mAh or 2000 mAh, depending on configuration |
| Power / charging | Photovoltaic charging; USB backup charging | Photovoltaic charging; USB backup charging |
| Refresh current | 50 mA | 50 mA |
| Standby current | 0.2 mA | 0.1 mA |
| Operating temperature | 0 to 40 °C | 0 to 50 °C |
| Storage temperature | −25 to 60 °C | −25 to 60 °C |
| Endurance reference | Supplier states continuous standby at approx. 300 lux for 8 h/day; validate under actual conditions | Supplier states 2-3 years at two refreshes/day; validate under actual conditions |
| Wireless & Integration | ||
| Bluetooth | BLE 5.0 compatible | Bluetooth 5.0 |
| NFC | ISO/IEC 14443-A; NFC Transfer | ISO/IEC 14443-A; NFC Transfer |
| Wi-Fi / base station | Wi-Fi & base station listed as optional; PC platform | Wi-Fi & base station listed as optional; PC platform |
| BLE data rates | 1 Mbps and 2 Mbps | 1 Mbps and 2 Mbps |
| Channel spacing | 2 MHz | 2 MHz |
| Wireless frequency | 2.402-2.480 GHz | 2.402-2.480 GHz |
| Transmit power | −20 to +10 dBm in 3 dB steps | −20 to +10 dBm in 3 dB steps |
| Bluetooth transfer range | Supplier states over 15 m unobstructed for phone or base-station transfer | Supplier lists within 10 m for Bluetooth, up to 15 m normal radius and up to 100 m open area; verify by setup |
| Mobile operating systems | Android 7.0+, iOS 9.0+, HarmonyOS | Android 7.0+, iOS 9.0+, HarmonyOS |
| Offline mobile app | Android supported | Android supported |
| Server operating systems | Windows 7 and Linux | Windows 7 and Linux |
| Cloud server | Supported | Supported |
| Third-party system integration | Supported | Supported |
Why this product
A clear nameplate that is easier to reuse
Low-power E-Ink
A paper-like display keeps names, roles and meeting information visible between updates.
Indoor PV integration
A photovoltaic module can help harvest available room light. Actual contribution depends on lighting, update activity and the chosen system.
Reusable presentation
Change the displayed information for different people or events instead of printing a new paper card each time.
Use cases
Applications

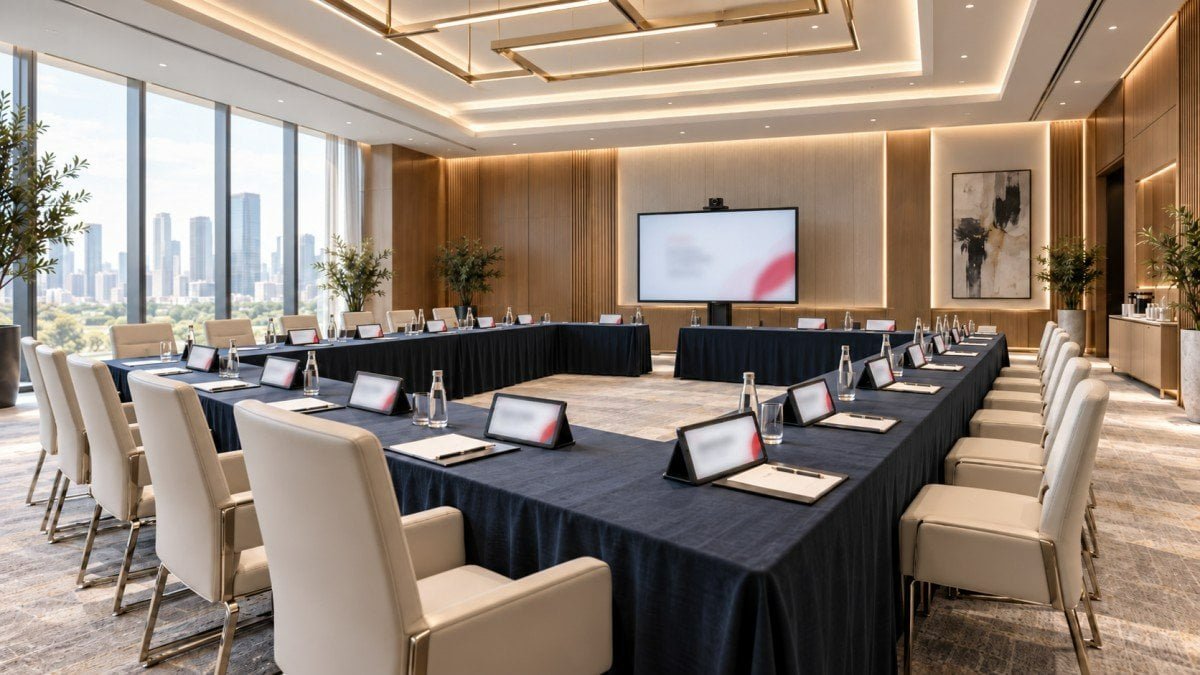

Boardroom Meetings
Display directors' names and roles at each seat, then update the information when the meeting roster changes.

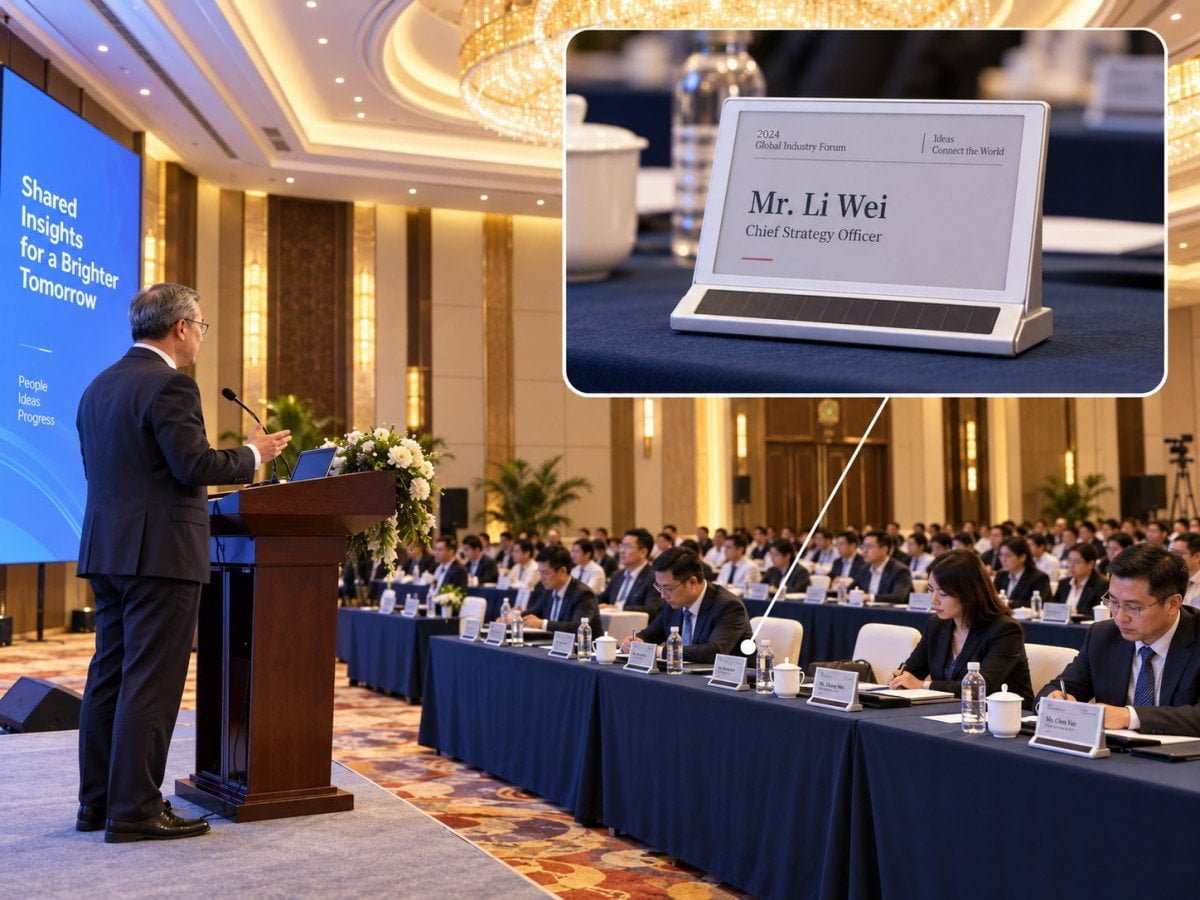

Conferences & Summits
Identify speakers, panelists and delegates across sessions without printing a new name card for every change.

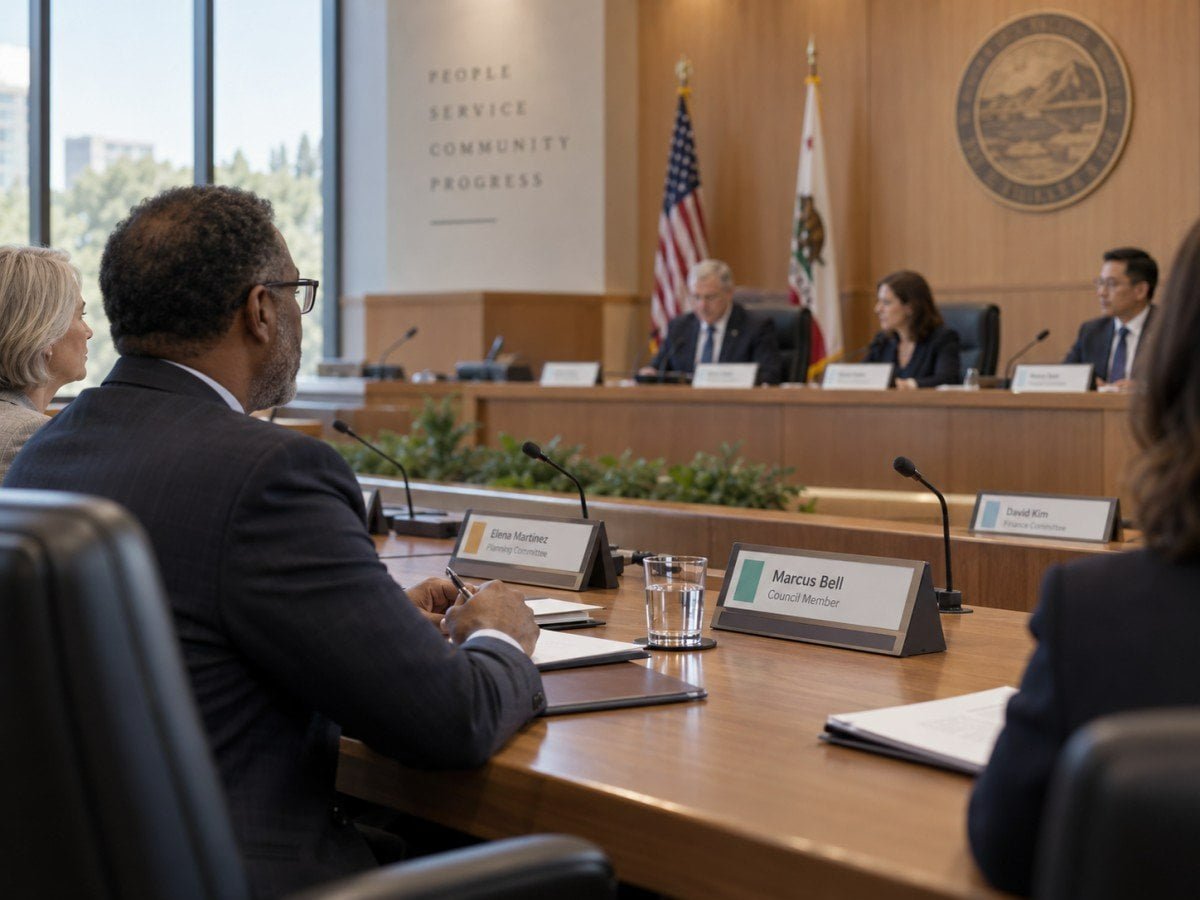

Council & Committee Meetings
Show member names, titles or represented organizations at assigned seats for formal discussions.
Training Rooms & Workshops
Help instructors and participants learn names quickly, with displays that can be reused for new groups.

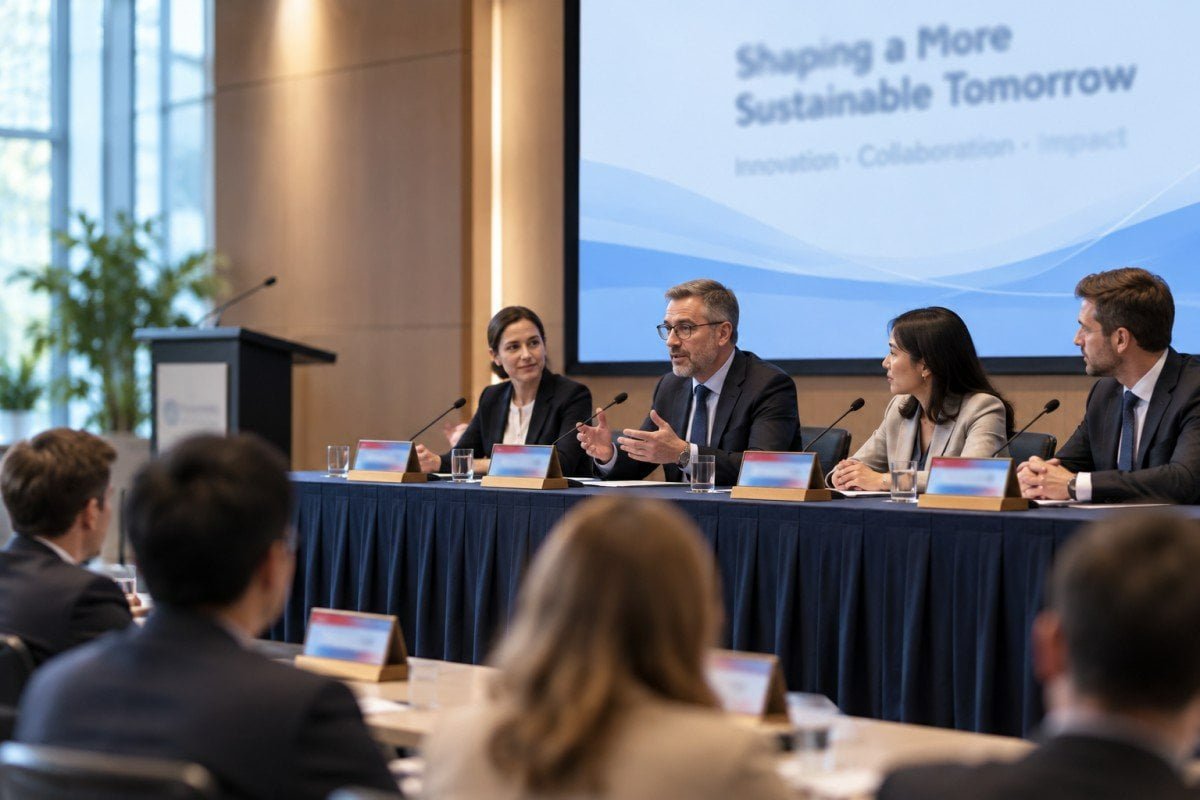

Panel Discussions
Present each panelist's name and affiliation to audiences and update the display between sessions.

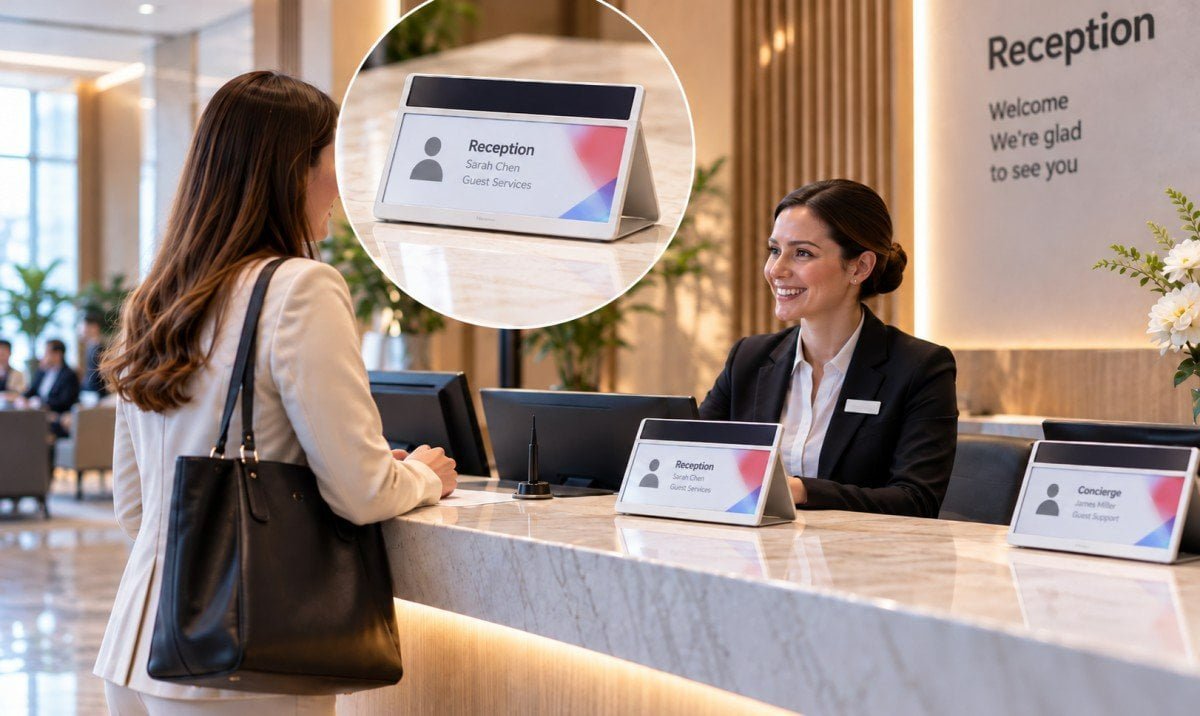

Reception & Service Desks
Identify the person or service at a desk and keep information current as staff rotate.
Indoor PV in practice
From ambient light to a useful product
A nameplate is a concrete example of indoor solar product design. The photovoltaic module, power management, energy storage and e-paper display have to be matched to the light available where the device will be used.
Battery-free use or a specific charging interval cannot be assumed. For a reliable design, test the complete device under representative lighting and update patterns.
Explore Indoor Solar Solutions →- 01
Indoor light
Light source, position and time.
- 02
PV module
Sized around the product surface.
- 03
Power system
Management and storage as required.
- 04
E-Ink display
Content and refresh needs.
From nameplate design to a display update
A successful desk nameplate brings together the display, indoor PV module, power system and content workflow.
Designed around the complete product
Form, screen viewing angle, PV placement and internal space are reviewed together. The enclosure and interfaces can then be assessed against the intended workplace and installation conditions.
- Display size and viewing arrangement
- Indoor light and PV placement
- Charging, storage and update interfaces

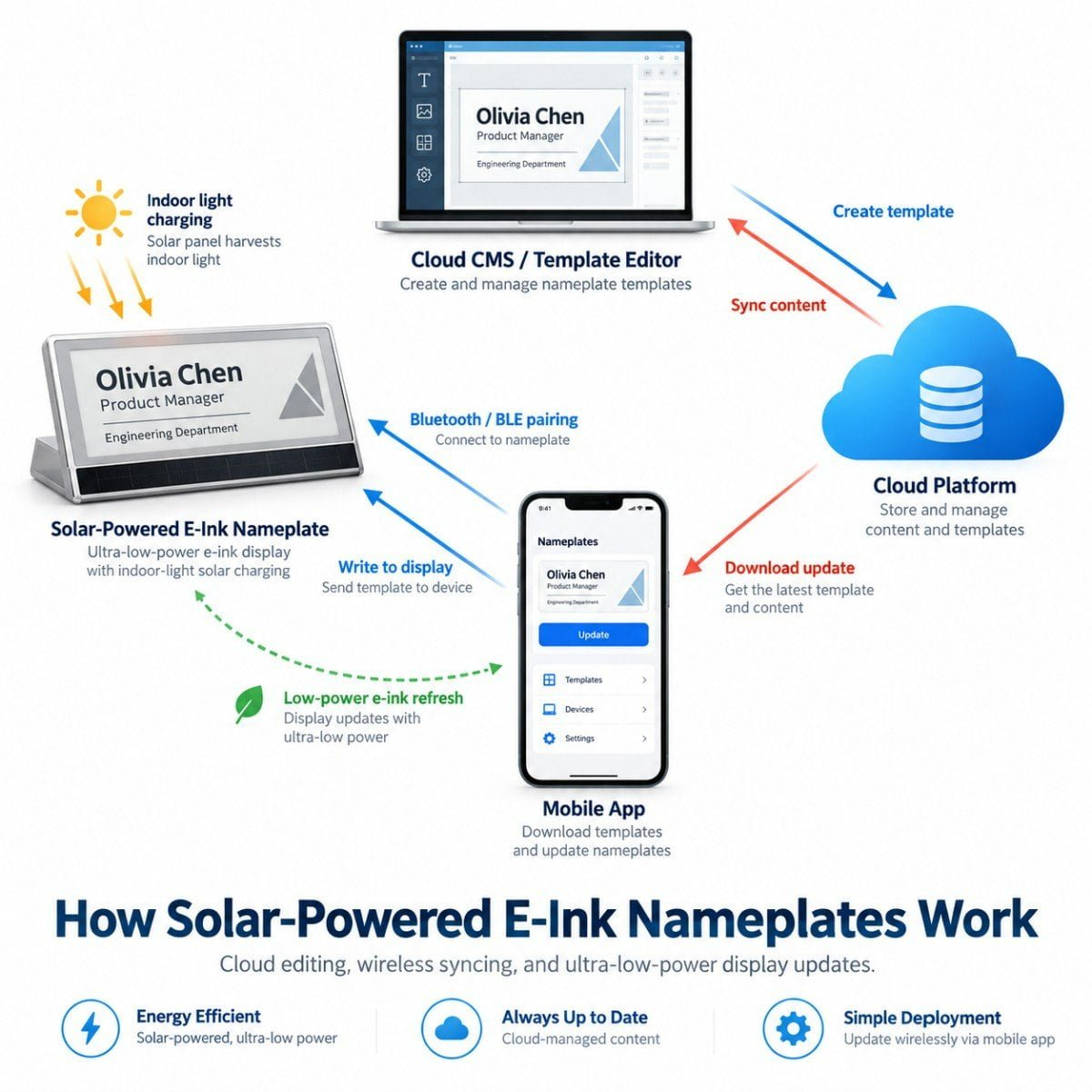

How content can reach the display
The diagram illustrates a template being prepared, transferred through a mobile workflow and shown on the E-Ink nameplate. Indoor PV and energy storage support the low-power device between updates.
Available software, cloud connectivity, BLE/NFC functions and the exact update method should be confirmed for the chosen model and project.
View workflow diagram at full size →Buy or customize
Tell us what you need
For a product quote, share your expected quantity, destination market and intended use. For OEM/ODM development, add your desired display format, appearance, content-update workflow and available lighting conditions.
Request Pricing & Availability →What we will confirm with you
- ✓ Available product configuration and images
- ✓ Display size, content-update method and power arrangement
- ✓ Quantity, lead time and applicable customization
- ✓ Performance under your actual lighting and use pattern
No price, minimum order quantity, certification or operating-duration claim is published until verified.
Frequently asked questions
Can I buy the nameplate as a finished product?
Please share your intended market, required configuration and estimated quantity. We can review the available options and provide a project-specific quotation.
Will it work without external charging?
That depends on lighting conditions, power consumption, energy storage and the selected configuration. We would need to assess the intended use case before estimating charging needs or operating time.
Can the product be customized?
You can discuss the display format, enclosure, branding, update workflow and solar integration with us. Customization options depend on technical feasibility and the scope of the project.
What is the minimum order quantity?
Minimum order quantities vary with the configuration, components and level of customization. Tell us your expected volume and project stage so we can discuss suitable options.
How long do samples and production take?
Lead times depend on design work, component availability, testing requirements and order volume. We can provide an estimated schedule after reviewing your specifications and confirming the project scope.
Is export to my market possible?
Please let us know the destination country and any documentation or compliance requirements. We can review the applicable product, shipping and regulatory considerations before confirming an export arrangement.
Can you support an OEM or ODM project?
Share your application, target specifications and any existing drawings or prototypes. We can discuss the engineering work, solar integration and manufacturing requirements involved; the development approach will depend on the project review.
